Full Automatic double colors EVA foaming injection moulding machine
Technical Reference
MOLD-HOLDER STATION |
N° |
2 |
6 |
8 |
10 |
||||||||||
MOLD CLAMPING FORCE |
kN |
2000 |
2000 |
2000 |
2000 |
||||||||||
MOLD OPENING STROKE |
mm |
350 |
350 |
350 |
350 |
||||||||||
TWO-COLOR HEATING PLATE DIMENSIONS |
mm |
310*600 |
310*600 |
310*600 |
310*600 |
||||||||||
STANDARS MOLD HEIGHT |
mm |
125*330 |
125*330 |
125*330 |
125*330 |
||||||||||
INJECTION HEIGHT |
mm |
60*160 |
60*160 |
60*160 |
60*160 |
||||||||||
PASSAGE BETWEEN COLUMNS |
mm |
860 |
860 |
860 |
860 |
||||||||||
SINGLE -COLOR DISTANCE BETWEEN CENTERS OF INJECTION HOLES |
mm |
360 |
360 |
360 |
360 |
||||||||||
PLATE HEATING POWER |
kW |
8 |
8 |
8 |
8 |
||||||||||
INJECTION UNIT | |||||||||||||||
NUMBER OF INJECTION UNITS |
N° |
4 |
4 |
4 |
4 |
||||||||||
SCREW DIAMETER |
mm |
60 |
65 |
60 |
65 |
60 |
65 |
60 |
65 |
||||||
SCREW L/D RATIO |
mm |
19 |
17 |
19 |
17 |
19 |
17 |
19 |
17 |
||||||
INJECTION VOLUME |
cm3 |
1100 |
1300 |
1100 |
1300 |
1100 |
1300 |
1100 |
1300 |
||||||
?INJECTION PRESSURE |
bar |
1100 |
900 |
1100 |
900 |
1100 |
900 |
1100 |
900 |
||||||
INJECTION SPEED |
cm3/s |
230 |
230 | 230 |
230 |
||||||||||
ilSCREW SPEED |
r.p.m |
0-140 |
0-140 |
0-140 |
0-140 | ||||||||||
?SCREW TOROUE(MAX) |
daN.m |
160 | 160 | 160 | 160 | ||||||||||
HEATING ZONES | N° |
4 |
4 | 4 |
4 |
||||||||||
POWER INSTALLED | |||||||||||||||
INJECTION UNITS HEATING |
kW |
5.5X4 |
5.5X4 |
5.5X4 |
5.5X4 |
||||||||||
MOTOR MOVEMENT INJECTOR |
kW |
2.2 | 2.2 |
2.2 |
2.2 | ||||||||||
VACUUM PUMP |
kW |
4 |
4 | 4 |
4 |
||||||||||
HEATED PLATES | kW | 32 | 96 | 128 | 160 | ||||||||||
HYDRAULIC UNIT MOTOR |
kW |
105 | 105 | 105 | 105 | ||||||||||
TOTAL INSTALLED POWER |
kW |
59 |
223 | 255 | 287 | ||||||||||
AVERAGE CONSUMPTION | |||||||||||||||
ELECTRICAL ENERGY |
kW/h |
30 |
40 | 50 | 60 | ||||||||||
AIR |
NL/min |
100 |
100 |
100 |
100 | ||||||||||
REFRIGERATION UNITS | Kcal/h | 16000 | 21000 |
27000 |
30000 | ||||||||||
SWEIGHT | |||||||||||||||
NET WEIGHT |
kg |
30 | 40 | 50 |
60 |
||||||||||
(L*W*H) MACHINE DIMENSIONS | m | 6.3X4.2X3.1 |
11X4.2X3.1 |
13X4.2X3 |
15.5X4.2X3.1 |

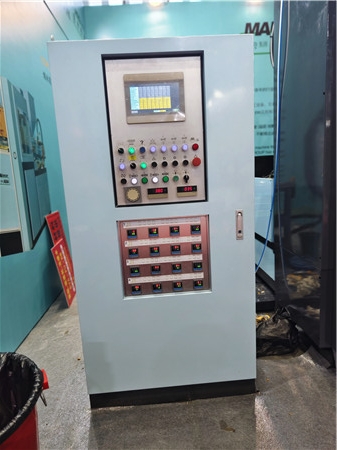

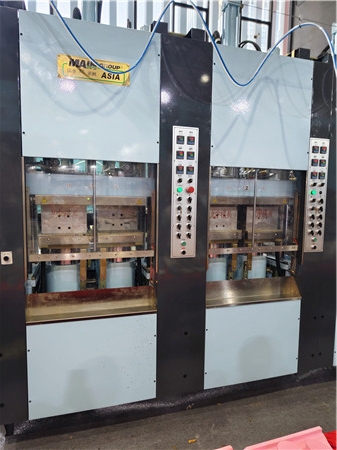

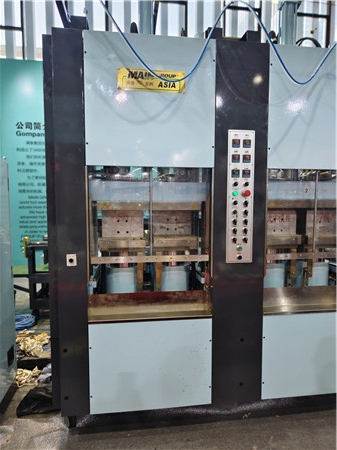

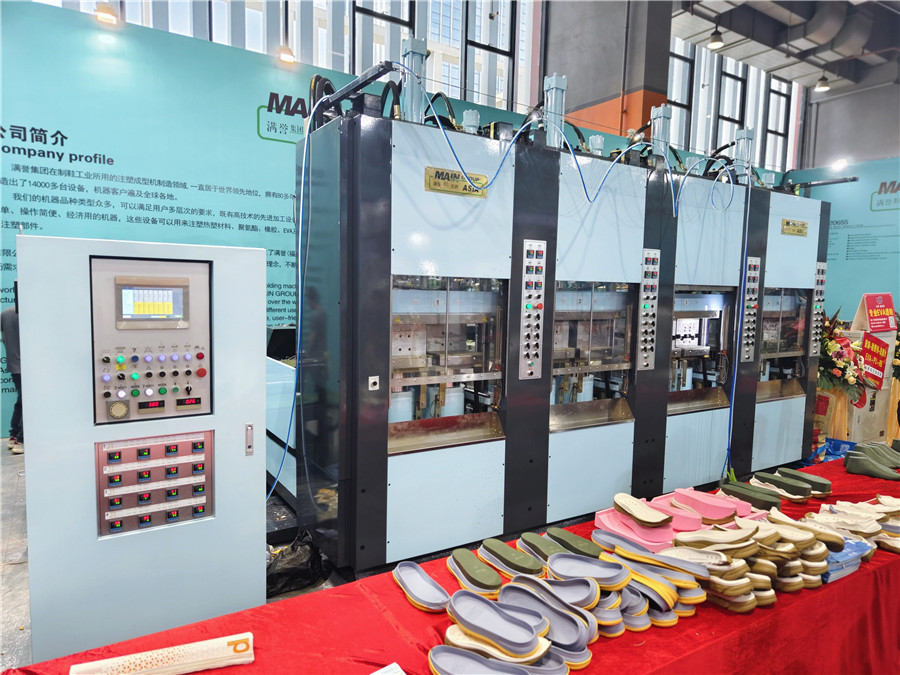

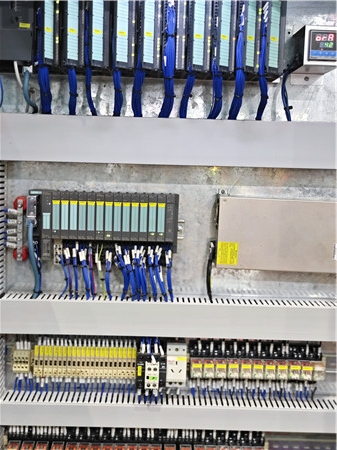

Display Of Eva Foaming Injection Molding Machine

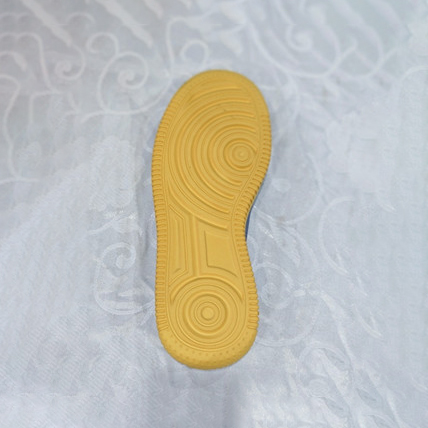

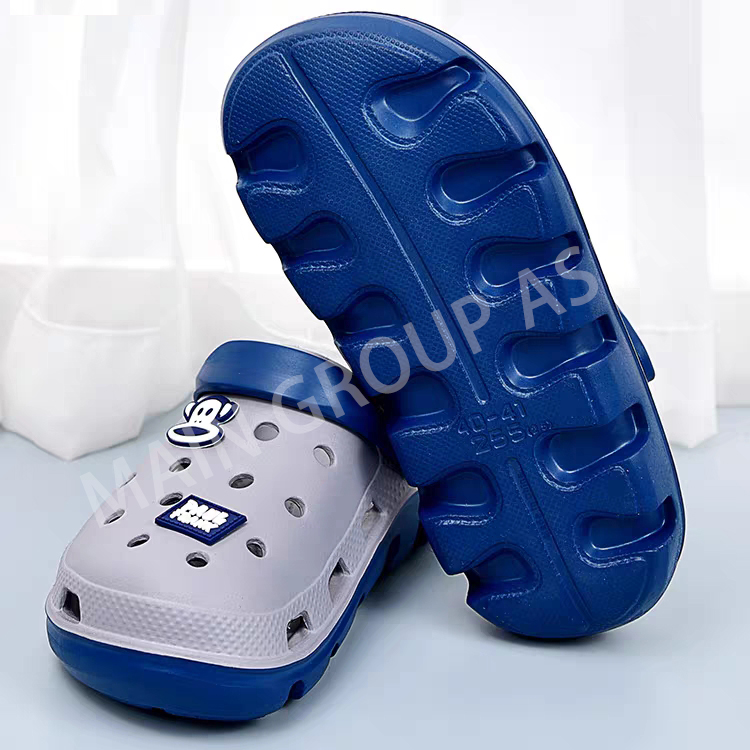

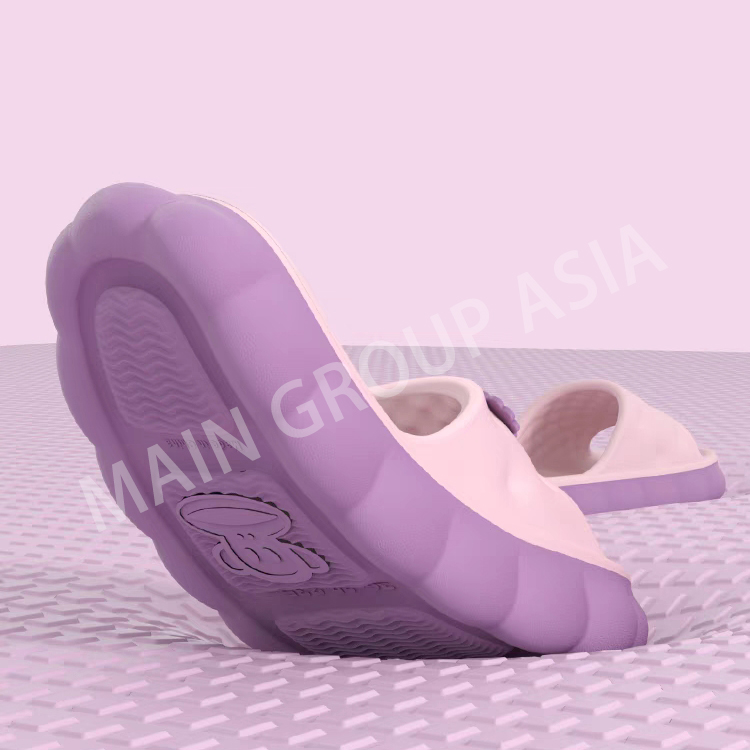

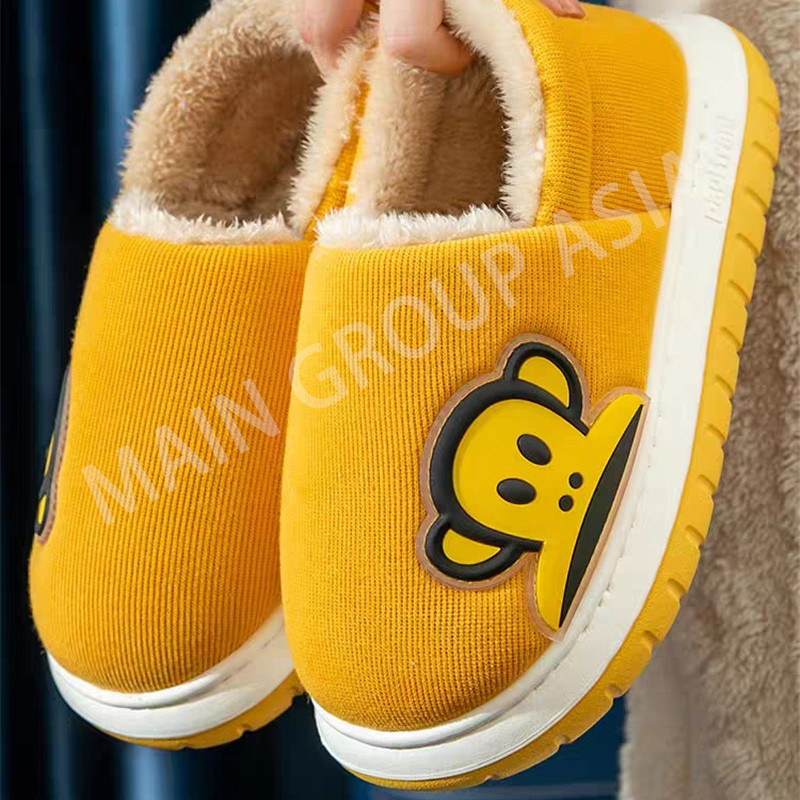

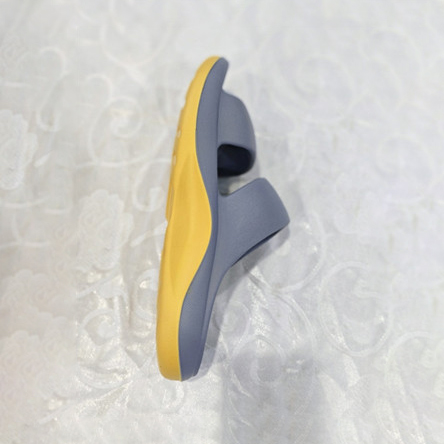

Display Of Finished Products
