MAIN GROUP (Fujian) Footwear
Machinery Co., Ltd.

With more than 80 years of industry experienceMachine customers all over the world

SP55-3 Static Machine For The Production One Color Sole In Thermoplastic Macterials

The production is suitable for various types of shoes, made of compressed and expanded thermoplastic materials, with or without embedded monochrome soles (leather bottom, sandwich, heel belt, etc.) static injection molding machine. It represents the best choice of static injection molding machine for monochrome soles. Because it effectively solves all kinds of problems of this kind of products, the diversity of types, colors and materials requires the machine to have a strong flexibility. Operation Principle The machine uses a squeeze jet system. Extruder motors with three speeds or as optional are available for screw – one – piston injection and hydraulic motors. The machine consists of 3 workstations, either manual or semi-automatic with extractor

(Optional). Propulsion is pneumatic or hydraulic (optional). The simple structure, strong and flexible composition of the parts enables this series of products to be adapted to a variety of production requirements, while ensuring the highest quality and labor productivity in a variety of working environments.


Product Detail

Product Tags

Technical Reference

Technical Terms Unit

Piston-screw/YZ55-3

Station

NO

3

Mould closing force

KN

600

Stroke opening press

mm

210

Mould dimensions standards

mm

300x400

Maximum height of the mold

mm

200

Height mold by tender

mm

140

Height adjustable injection

mm

32+142

Injectors

NO

3

Screw diameter

mm

55
Ratio of the screw

mm

15

Plasticizing capacity each. Injector

kg/h

100

Injection volume

cc

720

Injection pressure

bar

650

Speed of the screw

rpm

130

Torque of the screw daNm 80
Injection speed cm3/sec

170

Heating zones

NO

3

POWER
Heating nozzle

KW

11.3

Hydraulic

KW

30
Total power

KW

41.3

Average consumption energy

KW/h

15

DIMENSIONS AND WEIGHTS
Width

mm

2240

Length

mm

3200

Height

mm

2700

Total net weight

kg

4200

Auxiliary Materials

Shape 1

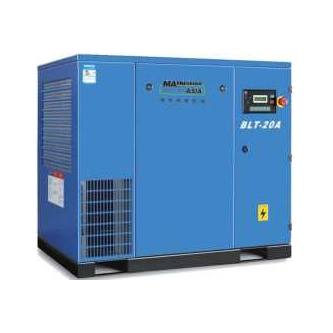

Screw Compressor

Shape 9

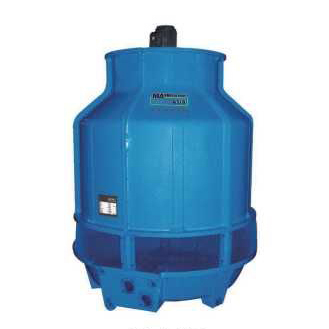

Water Cooling Tower

Shape 11

Pvc Oil Mixer

Shape 7

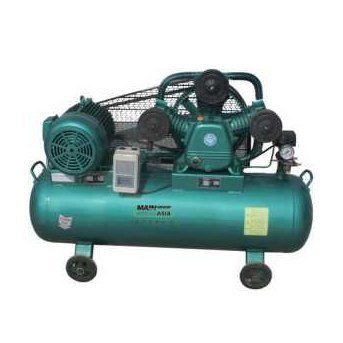

Air Compressor

Shape 9s

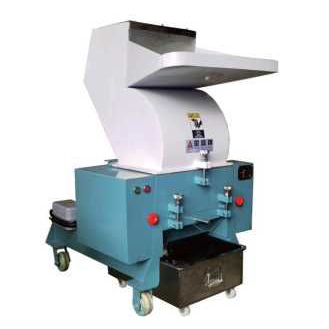

Crusher

Shape ss9

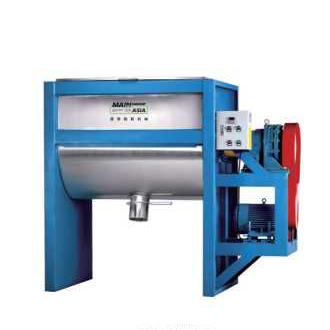

Pvc/Plastic Colour Mixer

Shape 13

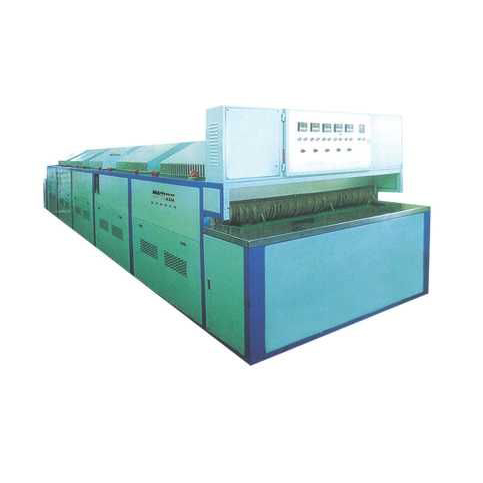

Constant-Temperuture Machine(One Layer)

Shape 15

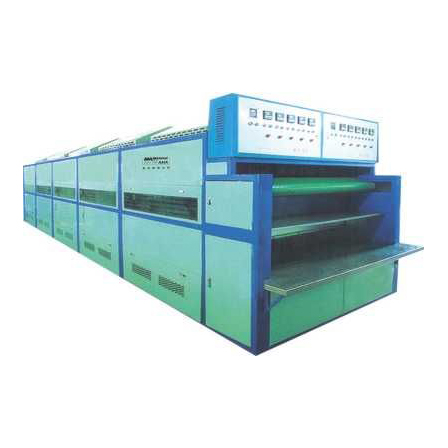

Constant -Temperuture Machine(Two Layer)
